os/linux-2.6-tag--devboard-R2_10-4/arch/cris/arch-v32/drivers/elphel/gamma_tables.c File Reference

#include <linux/module.h>
#include <linux/mm.h>
#include <linux/sched.h>
#include <linux/slab.h>
#include <linux/errno.h>
#include <linux/kernel.h>
#include <linux/fs.h>
#include <linux/string.h>
#include <linux/init.h>
#include <linux/autoconf.h>
#include <linux/vmalloc.h>
#include <asm/system.h>
#include <asm/byteorder.h>
#include <asm/io.h>
#include <asm/irq.h>
#include <asm/delay.h>
#include <asm/uaccess.h>
#include <asm/elphel/driver_numbers.h>
#include <asm/elphel/c313a.h>
#include <asm/elphel/exifa.h>
#include "fpgactrl.h"
#include "framepars.h"
#include "gamma_tables.h"

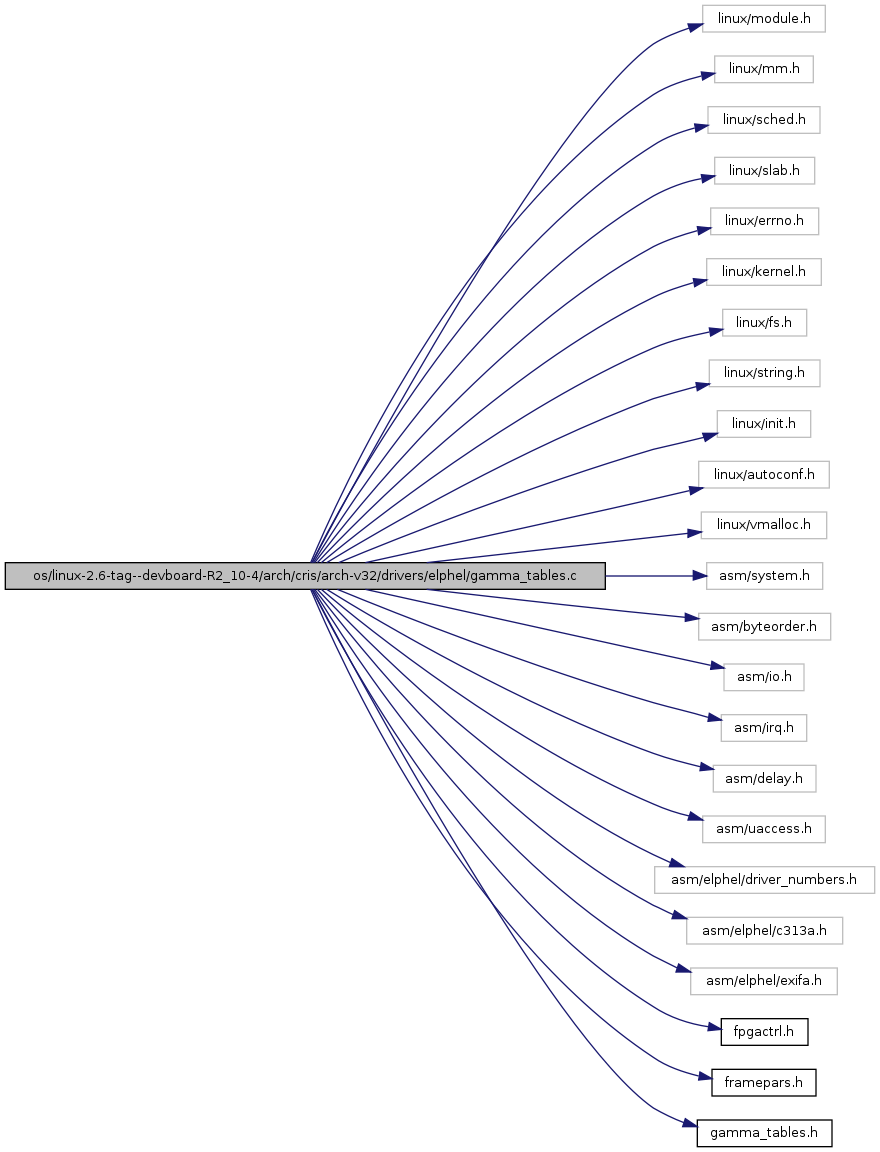

Include dependency graph for gamma_tables.c:

Go to the source code of this file.

Data Structures

struct  gammas_pd
 to use with mmap More...

Defines

#define MDF(x)
 optional debug output
#define D10(x)
#define D1I(x)   x
#define MDF10(x)
#define MDF11(x)
#define X3X3_GAMMAS_DRIVER_NAME   "Elphel (R) Model 353 Gamma Tables device driver"
#define GAMMA_THRESH   (GAMMA_CACHE_NUMBER/16)
 number of different non-scaled tables in cache when it starts to overwrite non-scaled tables rather than scaled
TODO: use P_*?
#define GAMMA_FILE_SIZE   GAMMA_CACHE_NUMBER
 File size reported by gamma device driver.

Functions

static struct gamma_stuct_t
gammas[GAMMA_CACHE_NUMBER] 		__attribute__ ((aligned(PAGE_SIZE)))
int gammas_open (struct inode *inode, struct file *file)
 Gammas driver OPEN method.
int gammas_release (struct inode *inode, struct file *file)
 Gammas driver RELEASE method.
loff_t gammas_lseek (struct file *file, loff_t offset, int orig)
 Gammas driver LSEEK method (and execute commands)
  • lseek (SEEK_SET, value) - do nothing, return 0 - replaced
  • lseek (SEEK_SET, value) - set file position (cache page index) to offset
  • lseek (SEEK_CUR, value) - ignore value, return last write result (and if it is still valid) - used by ftell
  • lseek (SEEK_END, value < 0) - do nothing?, do not modify file pointer
  • lseek (SEEK_END, value = 0) - set file pointer to GAMMA_CACHE_NUMBER
  • lseek (SEEK_END, value > 0) - execute commands, do not modify file pointer. Commands are:
    • LSEEK_GAMMA_INIT - initialize gamma tables structures
    • LSEEK_GAMMA_ISCURRENT - verify that the gumm atable is current.

ssize_t gammas_write (struct file *file, const char *buf, size_t count, loff_t *off)
 Gammas driver WRITE method write should be a single call (with or without actual table), file pointer after write is result node index (0 - failure) write method receives data and uses it with set_gamma_table()
  • first 2 bytes [0.1] - scale (0..0xffff),
  • next 2 bytes [2.3] - table hash - (i.e. gamma | (black << 8)),
  • next 1 byte [4] - mode (1 - not_nice, 2 - need reverse, 4 - hardware, 8 - lock)
  • next 1 byte [5] - color only if lock bit in mode is set
  • next 514 bytes [6..519] - 16-bit gamma table (if less than 514 bytes NULL will be passed to set_gamma_table() sets file pointer to gamma cache index (0 - no table exist).

int gammas_mmap (struct file *file, struct vm_area_struct *vma)
 Gammas driver MMAP method (debug feature that gives access to gammas structures, should be used read only).
static int __init gammas_init (void)
 Gammas driver init.
void remove_from_nonscaled (int index)
 remove item from non-scaled (top, "horizontal") chain
void remove_from_scaled (int index)
 remove item from scaled ("vertical") chain
void remove_from_all (int index)
 remove item from the all ("diagonal") chain
void insert_first_nonscaled (int index)
 insert item into non-scaled ("horizontal") chain as first
void insert_first_scaled (int non_scaled, int index)
 insert item into scaled ("vertical") chain as first
void insert_first_all (int index)
 insert item into "all" ("diagonal") chain as first
void init_gammas (void)
 Initialize gamma tables data structures.
int is_gamma_current (unsigned short hash16, unsigned short scale, int index)
 verifies that index is current (points to specified hash and scale)
int is_gamma_valid (unsigned short hash16, unsigned short scale, int index)
 verifies that index is current and points to a valid table with specified hash and scale
unsigned long get_locked_hash32 (int color)
 Looks for the hash32 last programmed to the FPGA for the particular color.
void lock_gamma_node (int index, int color)
 Lock gamma table for the specified color, save previous locks (if any) so new locks can be applied/canceled NOTE: interrupts should be disabled ***.
int unlock_gamma_node (int color)
 Unlock gamma table for the specified color NOTE: Not needed anymore.
unsigned long * get_gamma_fpga (int color)
 Find a gamma table in FPGA format to be programmed (table should already be locked for this color).
int gamma_new_node (void)
 Get a new node for gamma tables Find least recently used node (balancing between non-scaled and scaled), remove it from current chains and return pointers in the returned node are not initialized, "valid" bit is cleared NOTE: interrupts should be disabled ***.
void gamma_encode_fpga (unsigned short *gamma_in, unsigned long *gamma_out)
 Hardware-dependent encoding of the FPGA "gamma" table.
void gamma_calc_scaled (unsigned short scale, unsigned short *gamma_in, unsigned short *gamma_out)
 Hardware-dependent encoding of the FPGA "gamma" table. Converts unsigned short array of 257 16-bit values (only 10 msb-s are used) to 256 unsigned long words to be written to FPGA.
void gamma_calc_reverse (unsigned short *gamma_in, unsigned char *gamma_out)
 scale gamma table by (scale>>GAMMA_SCALE_SHIFT), saturate to 0..0xffff
int set_gamma_table (unsigned short hash16, unsigned short scale, unsigned short *gamma_proto, unsigned char mode, int color)
 calculate gamma table (and requested derivatives), insert new node if needed.
 module_init (gammas_init)
 MODULE_LICENSE ("GPLv3.0")
 MODULE_AUTHOR ("Andrey Filippov <andrey@elphel.com>.")
 MODULE_DESCRIPTION (X3X3_GAMMAS_DRIVER_NAME)

Variables

gamma_stuct_t * gammas_p
static struct file_operations gammas_fops

Define Documentation

#define D10 ( x   )

Definition at line 145 of file gamma_tables.c.

Referenced by set_gamma_table().

#define D1I ( x   )     x

Definition at line 146 of file gamma_tables.c.

#define GAMMA_FILE_SIZE   GAMMA_CACHE_NUMBER

File size reported by gamma device driver.

Definition at line 686 of file gamma_tables.c.

Referenced by gammas_open().

#define GAMMA_THRESH   (GAMMA_CACHE_NUMBER/16)

number of different non-scaled tables in cache when it starts to overwrite non-scaled tables rather than scaled
TODO: use P_*?

Definition at line 158 of file gamma_tables.c.

Referenced by gamma_new_node().

#define MDF ( x   )

optional debug output

Definition at line 144 of file gamma_tables.c.

#define MDF10 ( x   )

Definition at line 147 of file gamma_tables.c.

Referenced by gammas_init(), gammas_lseek(), gammas_mmap(), gammas_open(), gammas_release(), init_gammas(), and set_gamma_table().

#define MDF11 ( x   )

Definition at line 148 of file gamma_tables.c.

Referenced by gamma_calc_reverse(), gamma_calc_scaled(), gamma_encode_fpga(), get_gamma_fpga(), insert_first_nonscaled(), insert_first_scaled(), and unlock_gamma_node().

#define X3X3_GAMMAS_DRIVER_NAME   "Elphel (R) Model 353 Gamma Tables device driver"

Definition at line 153 of file gamma_tables.c.

Referenced by gammas_init().

Function Documentation

static struct gamma_stuct_t gammas [GAMMA_CACHE_NUMBER] __attribute__ ( (aligned(PAGE_SIZE))   )  [static]

void gamma_calc_reverse ( unsigned short *  gamma_in,
unsigned char *  gamma_out
)

scale gamma table by (scale>>GAMMA_SCALE_SHIFT), saturate to 0..0xffff

Parameters:
gamma_in direct gamma table (16 bit)
gamma_out reversed gamma table (8 bit)

running value to be compared against direct gamma

current value of reverse gamma table

current indedx of reverse gamma table

Definition at line 444 of file gamma_tables.c.

References MDF11, printk, and x.

Referenced by set_gamma_table().

void gamma_calc_scaled ( unsigned short  scale,
unsigned short *  gamma_in,
unsigned short *  gamma_out
)

Hardware-dependent encoding of the FPGA "gamma" table. Converts unsigned short array of 257 16-bit values (only 10 msb-s are used) to 256 unsigned long words to be written to FPGA.

Parameters:
scale scale to apply (1.0 ~ GAMMA_SCLALE_1=0x400)
gamma_in input (non-scaled) gamma table (16 bit)
gamma_out output (scaled) gamma table (16 bit)

rounding, not truncating

Definition at line 424 of file gamma_tables.c.

References d, GAMMA_SCALE_SHIFT, MDF11, and printk.

Referenced by set_gamma_table().

void gamma_encode_fpga ( unsigned short *  gamma_in,
unsigned long *  gamma_out
)

Hardware-dependent encoding of the FPGA "gamma" table.

Parameters:
gamma_in pointer to array of 257 16-bit values (only 10 msb-s are currently used)
gamma_out pointer to an array of 256 unsigned long words to be written to FPGA

Definition at line 402 of file gamma_tables.c.

References MDF11, and printk.

Referenced by set_gamma_table().

int gamma_new_node ( void   )

Get a new node for gamma tables Find least recently used node (balancing between non-scaled and scaled), remove it from current chains and return pointers in the returned node are not initialized, "valid" bit is cleared NOTE: interrupts should be disabled ***.

Returns:
Node index or 0 if none (unlocked) nodes are found

no scaled for the oldest hash

sacrifice oldest hash

use oldest scaled

skip locked if any (should be unlikely to get any locked)

remove from "all" chain (should work for tmp_p being oldest or not

remove from "scaled chain"

Definition at line 377 of file gamma_tables.c.

References GAMMA_THRESH, gamma_stuct_t::newer_all, gamma_stuct_t::oldest_all, gamma_stuct_t::oldest_non_scaled, remove_from_all(), remove_from_nonscaled(), remove_from_scaled(), and gamma_stuct_t::valid.

Referenced by set_gamma_table().

static int __init gammas_init ( void   )  [static]

Gammas driver init.

Returns:
0

maybe not needed to put linear to cache - it can be calculated as soon FPGA will be tried to be programmed with

hash16==0

Definition at line 883 of file gamma_tables.c.

References ELPHEL_DEBUG_DELAY, GAMMA_SCLALE_1, gammas_fops, GAMMAS_MAJOR, init_gammas(), KERN_ERR, MDF10, printk, set_gamma_table(), udelay, and X3X3_GAMMAS_DRIVER_NAME.

loff_t gammas_lseek ( struct file *  file,
loff_t  offset,
int  orig
)

Gammas driver LSEEK method (and execute commands)

Parameters:
file
offset
orig SEEK_SET, SEEK_CUR or SEEK_SET END
Returns:
file position gamma cache index (0 - invalid)

Execute commands

wrong index

other commands

not SEEK_SET/SEEK_CUR/SEEK_END

switch (orig)

other minors

Definition at line 762 of file gamma_tables.c.

References CMOSCAM_MINOR_GAMMAS, GAMMA_CACHE_NUMBER, gammas_pd::hash16, init_gammas(), is_gamma_current(), LSEEK_GAMMA_INIT, LSEEK_GAMMA_ISCURRENT, MDF10, gammas_pd::minor, printk, gammas_pd::scale, SEEK_CUR, SEEK_END, and SEEK_SET.

int gammas_mmap ( struct file *  file,
struct vm_area_struct *  vma
)

Gammas driver MMAP method (debug feature that gives access to gammas structures, should be used read only).

Parameters:
file
vma
Returns:
OK - 0, negative - errors

Definition at line 861 of file gamma_tables.c.

References CMOSCAM_MINOR_GAMMAS, gammas_p, MDF10, gammas_pd::minor, and printk.

int gammas_open ( struct inode *  inode,
struct file *  file
)

Gammas driver OPEN method.

Parameters:
inode inode
file file pointer
Returns:
OK - 0, -EINVAL for wrong minor

already allocated

Definition at line 701 of file gamma_tables.c.

References CMOSCAM_MINOR_GAMMAS, GAMMA_FILE_SIZE, GFP_KERNEL, gammas_pd::hash16, kfree, kmalloc, MDF10, gammas_pd::minor, mode, printk, and gammas_pd::scale.

int gammas_release ( struct inode *  inode,
struct file *  file
)

Gammas driver RELEASE method.

Parameters:
inode inode
file file pointer
Returns:
OK - 0, -EINVAL for wrong minor

do not need to free anything - "wrong number"

Definition at line 732 of file gamma_tables.c.

References CMOSCAM_MINOR_GAMMAS, kfree, MDF10, and printk.

ssize_t gammas_write ( struct file *  file,
const char *  buf,
size_t  count,
loff_t *  off
)

Gammas driver WRITE method write should be a single call (with or without actual table), file pointer after write is result node index (0 - failure) write method receives data and uses it with set_gamma_table()

Parameters:
file
buf
count
off
Returns:
full length passed or 0 if failed

************* NOTE: Never use file->f_pos in write() and read() !!!

complete gamma table is not available

Definition at line 821 of file gamma_tables.c.

References color, gamma, gammas_pd::hash16, mode, and gammas_pd::scale.

unsigned long* get_gamma_fpga ( int  color  )

Find a gamma table in FPGA format to be programmed (table should already be locked for this color).

Parameters:
color color index (0..3) of the table
Returns:
pointer to a gamma table (or NULL if table does not exist)

NOTE: Not needed anymore?

Definition at line 360 of file gamma_tables.c.

References gamma_stuct_t::fpga, gamma_stuct_t::locked_color, MDF11, and printk.

Referenced by pgm_gammaload().

unsigned long get_locked_hash32 ( int  color  )

Looks for the hash32 last programmed to the FPGA for the particular color.

Parameters:
color
Returns:
hash32 (combined gamma/black/scale) locked fro a specified color. If none - return 0

Definition at line 314 of file gamma_tables.c.

References gamma_stuct_t::hash32, and gamma_stuct_t::locked_color.

Referenced by pgm_gamma(), and pgm_gammaload().

void init_gammas ( void   )

Initialize gamma tables data structures.

empty 2-d chain

all entries in a same

no parent.FIXME: Where is it used? -1 if never used

something else?

Definition at line 258 of file gamma_tables.c.

References flags, GAMMA_CACHE_NUMBER, gammas_p, local_irq_restore, local_irq_save, gamma_stuct_t::locked, MDF10, gamma_stuct_t::newer_all, gamma_stuct_t::newest_all, gamma_stuct_t::newest_non_scaled, gamma_stuct_t::non_scaled_length, gamma_stuct_t::older_all, gamma_stuct_t::oldest_all, gamma_stuct_t::oldest_non_scaled, printk, and gamma_stuct_t::valid.

Referenced by gammas_init(), and gammas_lseek().

void insert_first_all ( int  index  )  [inline]

insert item into "all" ("diagonal") chain as first

Parameters:
index item index to remove

Definition at line 248 of file gamma_tables.c.

References gamma_stuct_t::newer_all, gamma_stuct_t::newest_all, and gamma_stuct_t::older_all.

Referenced by set_gamma_table().

void insert_first_nonscaled ( int  index  )  [inline]

insert item into non-scaled ("horizontal") chain as first

Parameters:
index item index to remove

no scaled yet - point to itself

no scaled yet - point to itself

Definition at line 214 of file gamma_tables.c.

References MDF11, gamma_stuct_t::newer_non_scaled, gamma_stuct_t::newest_non_scaled, gamma_stuct_t::newest_scaled, gamma_stuct_t::non_scaled_length, gamma_stuct_t::older_non_scaled, gamma_stuct_t::oldest_scaled, printk, and gamma_stuct_t::this_non_scaled.

Referenced by set_gamma_table().

void insert_first_scaled ( int  non_scaled,
int  index
) [inline]

insert item into scaled ("vertical") chain as first

Parameters:
non_scaled index of non-scaled version of the node
index item index to remove

Definition at line 232 of file gamma_tables.c.

References MDF11, gamma_stuct_t::newer_scaled, gamma_stuct_t::newest_scaled, gamma_stuct_t::older_scaled, printk, and gamma_stuct_t::this_non_scaled.

Referenced by set_gamma_table().

int is_gamma_current ( unsigned short  hash16,
unsigned short  scale,
int  index
)

verifies that index is current (points to specified hash and scale)

Parameters:
hash16 - 16-bit unique hash for gamma table
scale - 16-bit scale for gamma table (6.10, so GAMMA_SCLALE_10x400 is 1.0)
index - gamma table index
Returns:
1 - table pointed by index is current, 0 - table is not current

Definition at line 293 of file gamma_tables.c.

Referenced by gammas_lseek(), and set_gamma_table().

int is_gamma_valid ( unsigned short  hash16,
unsigned short  scale,
int  index
)

verifies that index is current and points to a valid table with specified hash and scale

Parameters:
hash16 - 16-bit unique hash for gamma table
scale - 16-bit scale for gamma table (6.10, so GAMMA_SCLALE_1=0x400 is 1.0)
index - gamma table index
Returns:
1 - table pointed by index is current and valid, 0 - table is not current or not valid

Definition at line 304 of file gamma_tables.c.

void lock_gamma_node ( int  index,
int  color
) [inline]

Lock gamma table for the specified color, save previous locks (if any) so new locks can be applied/canceled NOTE: interrupts should be disabled ***.

Parameters:
index gamma table index
color

valid color

new gamma to the same color

remove any previous lock on the same color (if any)

Definition at line 325 of file gamma_tables.c.

References gamma_stuct_t::locked, and gamma_stuct_t::locked_color.

Referenced by set_gamma_table().

MODULE_AUTHOR ( "Andrey Filippov <andrey@elphel.com>."   )

MODULE_DESCRIPTION ( X3X3_GAMMAS_DRIVER_NAME   )

module_init ( gammas_init   )

MODULE_LICENSE ( "GPLv3.0"   )

void remove_from_all ( int  index  )  [inline]

remove item from the all ("diagonal") chain

Parameters:
index item index to remove

always - in that chain - after init

Definition at line 205 of file gamma_tables.c.

References gamma_stuct_t::newer_all, and gamma_stuct_t::older_all.

Referenced by gamma_new_node(), and set_gamma_table().

void remove_from_nonscaled ( int  index  )  [inline]

remove item from non-scaled (top, "horizontal") chain

Parameters:
index item index to remove

Definition at line 184 of file gamma_tables.c.

References gamma_stuct_t::newer_non_scaled, gamma_stuct_t::non_scaled_length, and gamma_stuct_t::older_non_scaled.

Referenced by gamma_new_node(), and set_gamma_table().

void remove_from_scaled ( int  index  )  [inline]

remove item from scaled ("vertical") chain

Parameters:
index item index to remove

will skip first, untill the cache is all used

Definition at line 194 of file gamma_tables.c.

References gamma_stuct_t::newer_scaled, and gamma_stuct_t::older_scaled.

Referenced by gamma_new_node(), and set_gamma_table().

int set_gamma_table ( unsigned short  hash16,
unsigned short  scale,
unsigned short *  gamma_proto,
unsigned char  mode,
int  color
)

calculate gamma table (and requested derivatives), insert new node if needed.

Parameters:
hash16 16-bit unique (non-scaled) gamma table identifier. Can be 1-byte gamma and 1-byte black level shift TODO: make black level fine-grained?
scale gamma table scale (currently 0x400 ~ 1.0) GAMMA_SCLALE_1 = 0x400
gamma_proto 16-bit gamma table prototype (or NULL)
mode bits specify calculation mode:
  • 1 - if set, no interrupts will be enabled between steps, whole operation will be atomic
  • 2 - calculate reverse gamma table
  • 4 - calculate FPGA-format gamma table.
  • 8 - Lock (FPGA) table for specified color
color color index (0..3) to lock table for (if mode bit 4 is set), otherwise color is ignored
Returns:
index for the specified table or 0 if none exists and prototype was not provided (gamma_proto==NULL)

NOTE: here

disable interrupts here

look for the matching hash

gammas[0].oldest_all=GAMMA_CACHE_NUMBER-1; gammas[0].newest_all=1;

NOTE: 253

NOTE: never

NOTE: 0xff

Got right hash?

no luck

NOTE: never

NOTE: never

matching hash not found, new table is not provided - return 0;

Create new proto table

could not allocate node

failure: could not allocate node - return 0;

fill it:

points to itself - no scaled versions yet

points to itself - no scaled versions yet

let interrupts to take place, and disable again

check if it is still there (likely so, but allow it to fail).

failure: other code used this node - return 0; (try not_nice next time?)

copy the provided table (full 16 bits)

add it to the chain

matching hash found,make it newest (remove from the chain + add to the chain)

if 0 - it is already the newest

NOTE: 0xff

NOTE: 0xff

NOTE: 0xff

now looking for the correct scale.

wanted non-scaled, got it ///NOTE: returns here

FIXME: 0xff

FIXME: got stuck here

Got right scale?

no luck

create new scale

could not allocate node

failure: could not allocate node - return 0;

fill it

insert into 2-d

insert into 1-d (all)

let interrupts to take place, and disable again

check if it is still there (likely so, but allow it to fail).

failure: other code used this node - return 0; (try not_nice next time?)

scaled table already exists, make it first in 2 chains:

found right scale, make it newest in two chain (2d - hash/scale and 1-d - all scaled together, regardless of the hash 2-d chain

not already the newest of scales for the same hash

1-d chain

not already the newest from all scaled

is the scaled version already calculated?

calculate scaled version

is hardware-encoded array already calculated (do it if not)?

lock the node for the color

let interrupts to take place, and disable again

check if it is still there (likely so, but allow it to fail).

failure: other code used this node - return 0; (try not_nice next time?)

Definition at line 475 of file gamma_tables.c.

References D10, D1I, flags, fpga, gamma_calc_reverse(), gamma_calc_scaled(), gamma_encode_fpga(), GAMMA_FPGA_MASK, GAMMA_MODE_HARDWARE, GAMMA_MODE_LOCK, GAMMA_MODE_NEED_REVERSE, GAMMA_MODE_NOT_NICE, gamma_new_node(), GAMMA_VALID_MASK, GAMMA_VALID_REVERSE, gamma_stuct_t::hash16, insert_first_all(), insert_first_nonscaled(), insert_first_scaled(), is_gamma_current(), local_irq_restore, local_irq_save, lock_gamma_node(), MDF10, memcpy(), gamma_stuct_t::newest_non_scaled, gamma_stuct_t::newest_scaled, gamma_stuct_t::older_non_scaled, gamma_stuct_t::older_scaled, gamma_stuct_t::oldest_scaled, printk, remove_from_all(), remove_from_nonscaled(), remove_from_scaled(), gamma_stuct_t::scale, and gamma_stuct_t::valid.

Referenced by gammas_init(), pgm_gamma(), and pgm_gammaload().

int unlock_gamma_node ( int  color  )

Unlock gamma table for the specified color NOTE: Not needed anymore.

Parameters:
color color index (0..3)
Returns:
wrong data -1, nothing to unlock - 0, >0 - unlocked index

clear appropriate "locked" bit for this table

Definition at line 341 of file gamma_tables.c.

References flags, local_irq_restore, local_irq_save, gamma_stuct_t::locked, gamma_stuct_t::locked_color, MDF11, and printk.

Variable Documentation

struct file_operations gammas_fops [static]

Initial value:

 {
   owner:    THIS_MODULE,
   llseek:   gammas_lseek,
   write:    gammas_write,
   open:     gammas_open,
   mmap:     gammas_mmap,
   release:  gammas_release
}

Definition at line 687 of file gamma_tables.c.

Referenced by gammas_init().

struct gamma_stuct_t* gammas_p

Definition at line 161 of file gamma_tables.c.

Referenced by gammas_mmap(), and init_gammas().

Generated on Fri Nov 28 00:08:02 2008 for elphel by  doxygen 1.5.1
