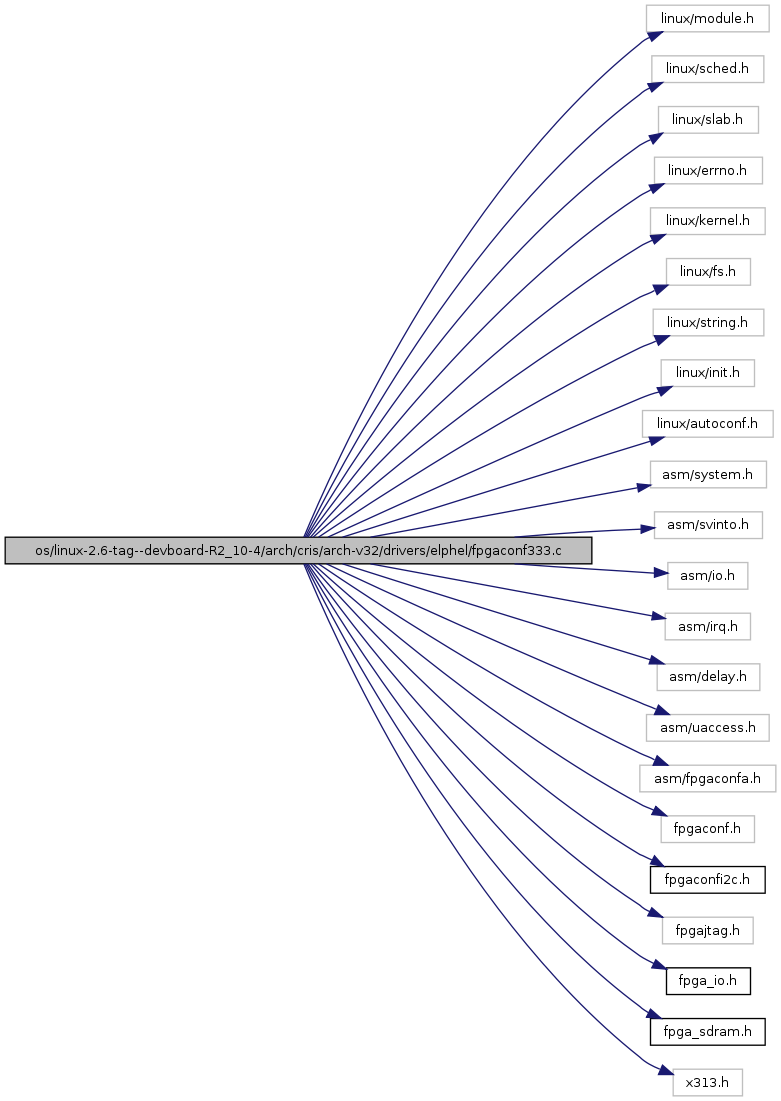

#include <linux/module.h>#include <linux/sched.h>#include <linux/slab.h>#include <linux/errno.h>#include <linux/kernel.h>#include <linux/fs.h>#include <linux/string.h>#include <linux/init.h>#include <linux/autoconf.h>#include <asm/system.h>#include <asm/svinto.h>#include <asm/io.h>#include <asm/irq.h>#include <asm/delay.h>#include <asm/uaccess.h>#include <asm/fpgaconfa.h>#include "fpgaconf.h"#include "fpgaconfi2c.h"#include "fpgajtag.h"#include "fpga_io.h"#include "fpga_sdram.h"#include "x313.h"Include dependency graph for fpgaconf333.c:
Go to the source code of this file.
Defines | |
| #define | D(x) |
| #define | D1(x) |
| #define | FPGA_MAJOR 129 |
| #define | MY_MODULE_DESCRIPTION "Elphel model 313 fpga/clock configuration driver" |
| #define | FPGACONF_DRIVER_NAME "fpga/clock configuration driver v1.0n" |
| #define | FPGACONF_MAXMINOR 10 |
Functions | |
| static int | fpga_open (struct inode *inode, struct file *filp) |
| static int | fpga_release (struct inode *inode, struct file *filp) |
| static int | fpga_ioctl (struct inode *inode, struct file *filp, unsigned int cmd, unsigned long arg) |
| static ssize_t | fpga_write (struct file *file, const char *buf, size_t count, loff_t *off) |
| static loff_t | fpga_lseek (struct file *file, loff_t offset, int orig) |
| static ssize_t | fpga_read (struct file *file, char *buf, size_t count, loff_t *off) |
| int | initClockDefault (void) |
| static int __init | fpga_init (void) |
| module_init (fpga_init) | |
| MODULE_LICENSE ("GPL") | |
| MODULE_AUTHOR ("Andrey Filippov <andrey@elphel.com>.") | |
| MODULE_DESCRIPTION (MY_MODULE_DESCRIPTION) | |
| MODULE_DESCRIPTION ("Elphel model 333 fpga download driver") | |
Variables | |
| static const char | fpga_name [] = "fpga_loader" |
| static int | minors [FPGACONF_MAXMINOR+1] |
| static struct file_operations | fpga_fops |
| static int | fpga_state = 0 |
| #define D | ( | x | ) |
*************************************************************************** ! FILE NAME : fpgaconf333.c ! DESCRIPTION: TBD ! Copyright (C) 2002-2004 Elphel, Inc ! -----------------------------------------------------------------------------** ! ! This program is free software: you can redistribute it and/or modify ! it under the terms of the GNU General Public License as published by ! the Free Software Foundation, either version 3 of the License, or ! (at your option) any later version. ! ! This program is distributed in the hope that it will be useful, ! but WITHOUT ANY WARRANTY; without even the implied warranty of ! MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the ! GNU General Public License for more details. ! ! You should have received a copy of the GNU General Public License ! along with this program. If not, see <http://www.gnu.org/licenses/>. ! -----------------------------------------------------------------------------** !
Definition at line 74 of file fpgaconf333.c.
| #define D1 | ( | x | ) |
Definition at line 75 of file fpgaconf333.c.
| #define FPGA_MAJOR 129 |
| #define FPGACONF_DRIVER_NAME "fpga/clock configuration driver v1.0n" |
| #define FPGACONF_MAXMINOR 10 |
Definition at line 77 of file fpgaconf333.c.
| static int __init fpga_init | ( | void | ) | [static] |
Definition at line 331 of file fpgaconf333.c.
References fpga_fops, FPGA_MAJOR, fpga_name, fpga_state, FPGACONF_DRIVER_NAME, FPGACONF_MAXMINOR, initClockDefault(), initPortB(), KERN_ERR, minors, and printk.
| static int fpga_ioctl | ( | struct inode * | inode, | |
| struct file * | filp, | |||
| unsigned int | cmd, | |||
| unsigned long | arg | |||
| ) | [static] |
Definition at line 243 of file fpgaconf333.c.
References D, fi2c_ioctl(), fpga_io_ioctl(), FPGA_JTAG, FPGA_PA_RD, FPGA_PA_WR, FPGA_PGM, FPGA_STAT, fpga_state, FPGACONF_GETSTATE, FPGACONF_MINOR_I2C, FPGACONF_MINOR_IORW, I2C_READREG, I2C_WRITEREG, and printk.
| static loff_t fpga_lseek | ( | struct file * | file, | |
| loff_t | offset, | |||
| int | orig | |||
| ) | [static] |
Definition at line 304 of file fpgaconf333.c.
References D, FPGACONF_MINOR_SDRAM, fsdram_lseek(), and printk.
| static int fpga_open | ( | struct inode * | inode, | |
| struct file * | filp | |||
| ) | [static] |
Definition at line 148 of file fpgaconf333.c.
References D, D1, fpga_initSDRAM(), fpga_state, FPGA_STATE_CLOCKS, FPGA_STATE_LOADED, FPGA_STATE_SDRAM_INIT, FPGACONF_MINOR_I2C, FPGACONF_MINOR_IORW, FPGACONF_MINOR_JTAG, FPGACONF_MINOR_SDRAM, fsdram_open(), minors, and printk.
| static ssize_t fpga_read | ( | struct file * | file, | |
| char * | buf, | |||
| size_t | count, | |||
| loff_t * | off | |||
| ) | [static] |
| static int fpga_release | ( | struct inode * | inode, | |
| struct file * | filp | |||
| ) | [static] |
Definition at line 212 of file fpgaconf333.c.
References D, fpga_state, FPGA_STATE_INITIALIZED, FPGACONF_MINOR_I2C, FPGACONF_MINOR_IORW, FPGACONF_MINOR_JTAG, FPGACONF_MINOR_SDRAM, fsdram_release(), minors, and printk.
| static ssize_t fpga_write | ( | struct file * | file, | |
| const char * | buf, | |||
| size_t | count, | |||
| loff_t * | off | |||
| ) | [static] |
Definition at line 294 of file fpgaconf333.c.
References FPGACONF_MINOR_JTAG, FPGACONF_MINOR_SDRAM, and fsdram_write().
| int initClockDefault | ( | void | ) |
Definition at line 110 of file fpgaconf333.c.
References fi2c_writeData(), and fpga_state.
Referenced by fpga_init().
| MODULE_AUTHOR | ( | "Andrey Filippov <andrey@elphel.com>." | ) |
| MODULE_DESCRIPTION | ( | MY_MODULE_DESCRIPTION | ) |
| module_init | ( | fpga_init | ) |
| MODULE_LICENSE | ( | "GPL" | ) |
struct file_operations fpga_fops [static] |
Initial value:
{
owner: THIS_MODULE,
open: fpga_open,
release: fpga_release,
ioctl: fpga_ioctl,
llseek: fpga_lseek,
read: fpga_read,
write: fpga_write
}
Definition at line 94 of file fpgaconf333.c.
Referenced by fpga_init().
const char fpga_name[] = "fpga_loader" [static] |
int fpga_state = 0 [static] |
Definition at line 108 of file fpgaconf333.c.
Definition at line 81 of file fpgaconf333.c.
