os/linux-2.6-tag--devboard-R2_10-4/arch/cris/arch-v32/drivers/elphel/fpgaclocks353.c File Reference

#include <linux/autoconf.h>
#include <linux/module.h>
#include <linux/sched.h>
#include <linux/slab.h>
#include <linux/ioport.h>
#include <linux/errno.h>
#include <linux/kernel.h>
#include <linux/fs.h>
#include <linux/string.h>
#include <linux/init.h>
#include <asm/arch/hwregs/reg_map.h>
#include <asm/arch/hwregs/reg_rdwr.h>
#include <asm/arch/hwregs/gio_defs.h>
#include <asm/arch/hwregs/intr_vect_defs.h>
#include <asm/arch/hwregs/pinmux_defs.h>
#include <asm/io.h>
#include <asm/system.h>
#include <asm/irq.h>
#include <asm/delay.h>
#include <asm/uaccess.h>
#include <asm/elphel/driver_numbers.h>
#include <asm/elphel/fpgaconfa.h>
#include <asm/elphel/fpgaclocks.h>
#include "fpgactrl.h"

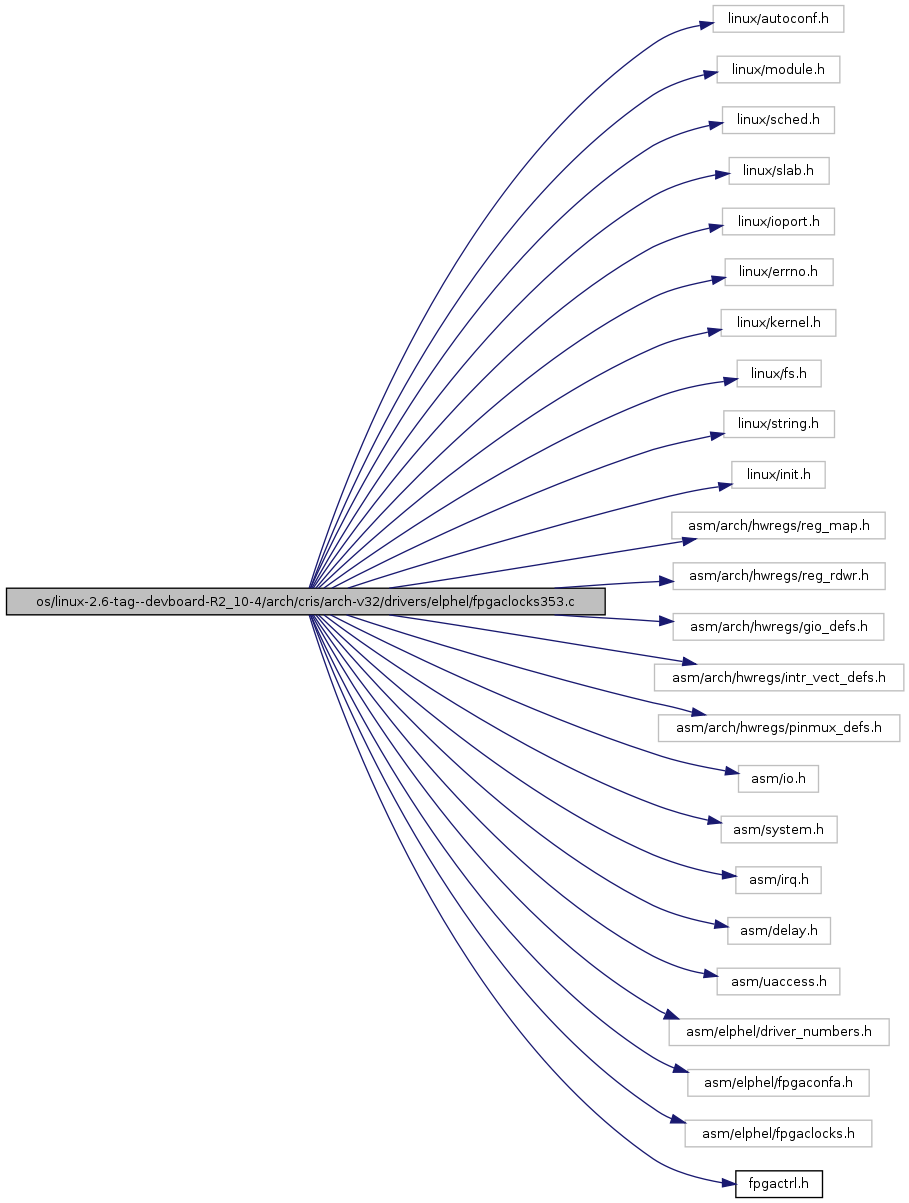

Include dependency graph for fpgaclocks353.c:

Go to the source code of this file.

Data Structures

struct t_pll_params

Defines

#define D(x)

#define D1(x)

#define D2(x)

#define D3(x)

#define D5(x)

#define FPGA_CLOCK_DRIVER_NAME   "Elphel (R) model 353 system clocks (PLL frequency synth.) driver"

#define FPGA_CLOCK_MAXMINOR   10

#define XCLOCK_LOW_TIME   8

#define XCLOCK_HIGH_TIME   8

#define XSTART_CONDITION_HOLD_TIME   8

#define XSTOP_CONDITION_HOLD_TIME   8

#define XENABLE_OUTPUT   0x01

#define XENABLE_INPUT   0x00

#define XI2C_CLOCK_HIGH   1

#define XI2C_CLOCK_LOW   0

#define XI2C_DATA_HIGH   1

#define XI2C_DATA_LOW   0

#define xi2c_delay(usecs)   udelay(usecs)

#define CY223933_SA   0xd2

#define CY22393_SCALE   100

#define CY22393_PLLMIN   (100000000/CY22393_SCALE)

#define CY22393_PLLMAX   (400000000/CY22393_SCALE)

#define CY22393_XTAL   ( 12000000/CY22393_SCALE)

#define CY22393_OUTMAX   (166000000/CY22393_SCALE)

#define CY22393_PMIN   16

#define CY22393_PMAX   1600

Functions

int xi2c_diagnose (void)

int xi2c_start (void)

void xi2c_stop (void)

void xi2c_nostop (void)

int xi2c_outbyte (unsigned char d)

unsigned char xi2c_inbyte (void)

void xi2c_sendack (void)

int fi2c_writeData (unsigned char theSlave, unsigned char *theData, int size, int nostop)

int fi2c_readData (unsigned char theSlave, unsigned char *theData, int size)

int fi2c_ioctl (struct inode *inode, struct file *file, unsigned int cmd, unsigned long arg)

int calc_pll_params (unsigned int f, t_pll_params *pars)

int setCYField (int addr, int mask, int value)

int setClockFreq (int nclock, int freq)

static int fpga_clock_open (struct inode *inode, struct file *filp)

static int fpga_clock_release (struct inode *inode, struct file *filp)

static int fpga_clock_ioctl (struct inode *inode, struct file *filp, unsigned int cmd, unsigned long arg)

static int __init fpga_clock_init (void)

void xi2c_disable (void)

void xi2c_scl (int x)

void xi2c_sda (int x)

int xi2c_getbit (void)

int xi2c_getscl (void)

void initPortB (void)

int getClockFreq (int nclock)

module_init (fpga_clock_init)

MODULE_LICENSE ("GPL")

MODULE_AUTHOR ("Andrey Filippov <andrey@elphel.com>.")

MODULE_DESCRIPTION (FPGA_CLOCK_DRIVER_NAME)

Variables

static int clock_frequency [4]

static const char fpga_clock_name [] = "fpga_clock_control"

static int minors [FPGA_CLOCK_MAXMINOR+1]

static struct file_operations fpga_clock_fops

Define Documentation

#define CY223933_SA 0xd2

Definition at line 191 of file fpgaclocks353.c.

#define CY22393_OUTMAX (166000000/CY22393_SCALE)

Definition at line 197 of file fpgaclocks353.c.

#define CY22393_PLLMAX (400000000/CY22393_SCALE)

Definition at line 195 of file fpgaclocks353.c.

#define CY22393_PLLMIN (100000000/CY22393_SCALE)

Definition at line 194 of file fpgaclocks353.c.

#define CY22393_PMAX 1600

Definition at line 199 of file fpgaclocks353.c.

#define CY22393_PMIN 16

Definition at line 198 of file fpgaclocks353.c.

#define CY22393_SCALE 100

Definition at line 193 of file fpgaclocks353.c.

#define CY22393_XTAL ( 12000000/CY22393_SCALE)

Definition at line 196 of file fpgaclocks353.c.

#define D ( x )

*************************************************************************** ! FILE NAME : fpgaclocks353.c ! provides control of the FPGA clocks based on 3-pll generator ! Direct r/w of the CY22393 over the I2C interface (connected to PB.16 and PB.17 of the CPU) ! supports 3 PLLs connected to 3 outputs (clk0, clk1 and clk2) ! clk3 can be only turned on to Xtal frequency (12MHz) or off ! Input parameter specifies frequency in Hz, internally data is rounded to 100Hz ! ! ! Copyright (C) 2002-2006 Elphel, Inc. ! -----------------------------------------------------------------------------** ! ! This program is free software: you can redistribute it and/or modify ! it under the terms of the GNU General Public License as published by ! the Free Software Foundation, either version 3 of the License, or ! (at your option) any later version. ! ! This program is distributed in the hope that it will be useful, ! but WITHOUT ANY WARRANTY; without even the implied warranty of ! MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the ! GNU General Public License for more details. ! ! You should have received a copy of the GNU General Public License ! along with this program. If not, see <http://www.gnu.org/licenses/>. ! -----------------------------------------------------------------------------** !

Log: fpgaclocks353.c,v

! Revision 1.1.1.1 2008/11/27 20:04:00 elphel ! ! ! Revision 1.3 2008/09/22 22:55:48 elphel ! snapshot ! ! Revision 1.2 2008/09/20 00:29:49 elphel ! moved driver major/minor numbers to a single file - include/asm-cris/elphel/driver_numbers.h ! ! Revision 1.1.1.1 2007/08/17 10:23:18 elphel ! This is a fresh tree based on elphel353-2.10 ! ! Revision 1.7 2007/08/17 10:23:18 spectr_rain ! switch to GPL3 license ! ! Revision 1.6 2007/07/20 10:17:45 spectr_rain ! *** empty log message *** ! ! Revision 1.2 2007/06/28 02:23:49 elphel ! removed initilaization to some frequencies during Linux booting (they are programmed in other places) ! ! Revision 1.1.1.1 2007/02/23 10:11:48 elphel ! initial import into CVS ! ! Revision 1.2 2005/05/10 21:08:49 elphel ! *** empty log message *** !

Definition at line 100 of file fpgaclocks353.c.

#define D1 ( x )

Definition at line 103 of file fpgaclocks353.c.

#define D2 ( x )

Definition at line 106 of file fpgaclocks353.c.

#define D3 ( x )

Definition at line 109 of file fpgaclocks353.c.

#define D5 ( x )

Definition at line 116 of file fpgaclocks353.c.

#define FPGA_CLOCK_DRIVER_NAME "Elphel (R) model 353 system clocks (PLL frequency synth.) driver"

Definition at line 120 of file fpgaclocks353.c.

#define FPGA_CLOCK_MAXMINOR 10

Definition at line 121 of file fpgaclocks353.c.

#define XCLOCK_HIGH_TIME 8

Definition at line 128 of file fpgaclocks353.c.

#define XCLOCK_LOW_TIME 8

Definition at line 127 of file fpgaclocks353.c.

#define XENABLE_INPUT 0x00

Definition at line 132 of file fpgaclocks353.c.

#define XENABLE_OUTPUT 0x01

Definition at line 131 of file fpgaclocks353.c.

#define XI2C_CLOCK_HIGH 1

Definition at line 133 of file fpgaclocks353.c.

#define XI2C_CLOCK_LOW 0

Definition at line 134 of file fpgaclocks353.c.

#define XI2C_DATA_HIGH 1

Definition at line 135 of file fpgaclocks353.c.

#define XI2C_DATA_LOW 0

Definition at line 136 of file fpgaclocks353.c.

#define xi2c_delay ( usecs ) udelay(usecs)

Definition at line 143 of file fpgaclocks353.c.

#define XSTART_CONDITION_HOLD_TIME 8

Definition at line 129 of file fpgaclocks353.c.

#define XSTOP_CONDITION_HOLD_TIME 8

Definition at line 130 of file fpgaclocks353.c.

Function Documentation

int calc_pll_params	(	unsigned int	f,
		t_pll_params *	pars
	)

int fi2c_ioctl	(	struct inode *	inode,
		struct file *	file,
		unsigned int	cmd,
		unsigned long	arg
	)

Definition at line 334 of file fpgaconfi2c.c.

int fi2c_readData	(	unsigned char	theSlave,
		unsigned char *	theData,
		int	size
	)

Definition at line 312 of file fpgaconfi2c.c.

int fi2c_writeData	(	unsigned char	theSlave,
		unsigned char *	theData,
		int	size,
		int	nostop
	)

static int __init fpga_clock_init ( void ) [static]

Definition at line 926 of file fpgaclocks353.c.

References FPGA_CLOCK_DRIVER_NAME, fpga_clock_fops, FPGA_CLOCK_MAJOR, FPGA_CLOCK_MAXMINOR, fpga_clock_name, fpga_state, initPortB(), KERN_ERR, minors, and printk.

static int fpga_clock_ioctl	(	struct inode *	inode,
		struct file *	filp,
		unsigned int	cmd,
		unsigned long	arg
	)			`[static]`

Definition at line 899 of file fpgaclocks353.c.

References D, D5, fi2c_ioctl(), FPGA_CLOCK_IOCTYPE, FPGA_CLOCK_IOCTYPE_RD, FPGA_CLOCK_MINOR_CLOCKS, FPGA_CLOCK_MINOR_I2C, getClockFreq(), printk, and setClockFreq().

static int fpga_clock_open	(	struct inode *	inode,
		struct file *	filp
	)			`[static]`

Definition at line 873 of file fpgaclocks353.c.

References D, FPGA_CLOCK_MINOR_CLOCKS, FPGA_CLOCK_MINOR_I2C, minors, and printk.

static int fpga_clock_release	(	struct inode *	inode,
		struct file *	filp
	)			`[static]`

Definition at line 892 of file fpgaclocks353.c.

References D, minors, and printk.

int getClockFreq ( int nclock )

Definition at line 777 of file fpgaclocks353.c.

References clock_frequency.

void initPortB ( void )

Definition at line 422 of file fpgaclocks353.c.

References xi2c_disable.

MODULE_AUTHOR ( "Andrey Filippov <andrey@elphel.com>." )

MODULE_DESCRIPTION ( FPGA_CLOCK_DRIVER_NAME )

module_init ( fpga_clock_init )

MODULE_LICENSE ( "GPL" )

int setClockFreq	(	int	nclock,
		int	freq
	)

Definition at line 400 of file fpgaconfi2c.c.

int setCYField	(	int	addr,
		int	mask,
		int	value
	)

int xi2c_diagnose ( void )

void xi2c_disable ( void ) [inline]

Definition at line 361 of file fpgaclocks353.c.

References D2, and printk.

int xi2c_getbit ( void ) [inline]

Definition at line 403 of file fpgaclocks353.c.

References D2, data, and printk.

int xi2c_getscl ( void ) [inline]

Definition at line 407 of file fpgaclocks353.c.

References D2, data, and printk.

unsigned char xi2c_inbyte ( void )

void xi2c_nostop ( void )

int xi2c_outbyte ( unsigned char d )

void xi2c_scl ( int x ) [inline]

Definition at line 372 of file fpgaclocks353.c.

References D2, and printk.

void xi2c_sda ( int x ) [inline]

Definition at line 380 of file fpgaclocks353.c.

References D2, and printk.

void xi2c_sendack ( void )

int xi2c_start ( void )

void xi2c_stop ( void )

Variable Documentation

int clock_frequency[4] [static]

Definition at line 145 of file fpgaclocks353.c.

struct file_operations fpga_clock_fops [static]

Initial value:

 {
  owner:    THIS_MODULE,
  open:     fpga_clock_open,
  release:  fpga_clock_release,
  ioctl:    fpga_clock_ioctl,
}

Definition at line 180 of file fpgaclocks353.c.

const char fpga_clock_name[] = "fpga_clock_control" [static]

Definition at line 172 of file fpgaclocks353.c.

int minors[FPGA_CLOCK_MAXMINOR+1] [static]

Definition at line 173 of file fpgaclocks353.c.

Generated on Fri Nov 28 00:07:53 2008 for elphel by

1.5.1
