apps/camogm2/camogm.h File Reference

#include <stdio.h>
#include <ogg/ogg.h>
#include <alsa/asoundlib.h>
#include <asm/elphel/c313a.h>
#include <asm/elphel/ext353.h>
#include <asm/elphel/exifa.h>
#include "ogmstreams.h"
#include <time.h>

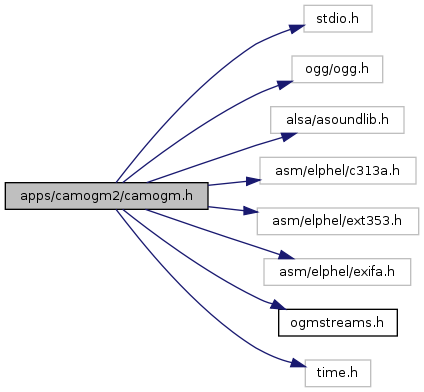

Include dependency graph for camogm.h:

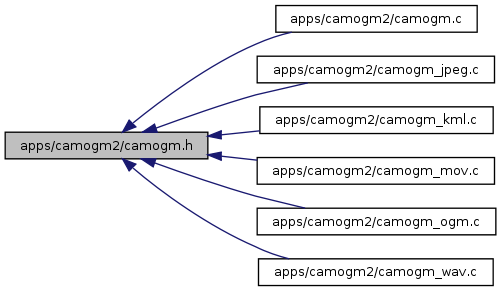

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	camogm_state
	Exif data used for KML. More...
struct	context_audio_t
Defines
#define	CAMOGM_FRAME_NOT_READY   1
#define	CAMOGM_FRAME_INVALID   2
#define	CAMOGM_FRAME_CHANGED   3
#define	CAMOGM_FRAME_NEXTFILE   4
#define	CAMOGM_FRAME_BROKEN   5
#define	CAMOGM_FRAME_FILE_ERR   6
#define	CAMOGM_FRAME_MALLOC   7
#define	CAMOGM_FRAME_OTHER   8
#define	CAMOGM_FORMAT_NONE   0
#define	CAMOGM_FORMAT_OGM   1
#define	CAMOGM_FORMAT_JPEG   2
#define	CAMOGM_FORMAT_MOV   3
#define	D(x)   {if (debug_file && debug_level){x;fflush(debug_file);}}
#define	D0(x)   {if (debug_file){x;fflush(debug_file);}}
#define	D1(x)   {if (debug_file && (debug_level > 0)){x;fflush(debug_file);}}
#define	D2(x)   {if (debug_file && (debug_level > 1)){x;fflush(debug_file);}}
#define	D3(x)   {if (debug_file && (debug_level > 2)){x;fflush(debug_file);}}
#define	D4(x)   {if (debug_file && (debug_level > 3)){x;fflush(debug_file);}}
#define	D5(x)   {if (debug_file && (debug_level > 4)){x;fflush(debug_file);}}
#define	D6(x)   {if (debug_file && (debug_level > 5)){x;fflush(debug_file);}}
#define	DA(x)
#define	DD(x)   {if (debug_file){fprintf(debug_file,"%s:%d:",__FILE__,__LINE__);x;fflush(debug_file);}}
#define	JPEG_HEADER_SIZE   0x26f
#define	AUDIO_SBUFFER_PREFIX   16
Functions
void	put_uint16 (void *buf, u_int16_t val)
	======================================================================================================
void	put_uint32 (void *buf, u_int32_t val)
void	put_uint64 (void *buf, u_int64_t val)
Variables
context_audio_t	ctx_a
int	debug_level
FILE *	debug_file
camogm_state *	state

---

Define Documentation

#define AUDIO_SBUFFER_PREFIX   16

Definition at line 204 of file camogm.h.

Referenced by audio_init(), and audio_process().

#define CAMOGM_FORMAT_JPEG   2

Definition at line 15 of file camogm.h.

#define CAMOGM_FORMAT_MOV   3

Definition at line 16 of file camogm.h.

#define CAMOGM_FORMAT_NONE   0

Definition at line 13 of file camogm.h.

#define CAMOGM_FORMAT_OGM   1

Definition at line 14 of file camogm.h.

#define CAMOGM_FRAME_BROKEN   5

Definition at line 8 of file camogm.h.

#define CAMOGM_FRAME_CHANGED   3

Definition at line 6 of file camogm.h.

#define CAMOGM_FRAME_FILE_ERR   6

Definition at line 9 of file camogm.h.

#define CAMOGM_FRAME_INVALID   2

Definition at line 5 of file camogm.h.

#define CAMOGM_FRAME_MALLOC   7

Definition at line 10 of file camogm.h.

#define CAMOGM_FRAME_NEXTFILE   4

Definition at line 7 of file camogm.h.

#define CAMOGM_FRAME_NOT_READY   1

Definition at line 4 of file camogm.h.

#define CAMOGM_FRAME_OTHER   8

Definition at line 11 of file camogm.h.

#define D

(

x

)

{if (debug_file && debug_level){x;fflush(debug_file);}}

Definition at line 18 of file camogm.h.

#define D0

(

x

)

{if (debug_file){x;fflush(debug_file);}}

Definition at line 19 of file camogm.h.

#define D1

(

x

)

{if (debug_file && (debug_level > 0)){x;fflush(debug_file);}}

Definition at line 20 of file camogm.h.

#define D2

(

x

)

{if (debug_file && (debug_level > 1)){x;fflush(debug_file);}}

Definition at line 21 of file camogm.h.

#define D3

(

x

)

{if (debug_file && (debug_level > 2)){x;fflush(debug_file);}}

Definition at line 22 of file camogm.h.

#define D4

(

x

)

{if (debug_file && (debug_level > 3)){x;fflush(debug_file);}}

Definition at line 23 of file camogm.h.

#define D5

(

x

)

{if (debug_file && (debug_level > 4)){x;fflush(debug_file);}}

Definition at line 24 of file camogm.h.

#define D6

(

x

)

{if (debug_file && (debug_level > 5)){x;fflush(debug_file);}}

Definition at line 25 of file camogm.h.

#define DA

(

x

)

Definition at line 27 of file camogm.h.

Referenced by audio_end(), audio_finish(), audio_init(), audio_process(), audio_start(), camogm_set_audio_format(), camogm_set_audio_state(), and camogm_start_mov().

#define DD

(

x

)

{if (debug_file){fprintf(debug_file,"%s:%d:",__FILE__,__LINE__);x;fflush(debug_file);}}

Definition at line 31 of file camogm.h.

#define JPEG_HEADER_SIZE   0x26f

Definition at line 33 of file camogm.h.

---

Function Documentation

void put_uint16	(	void *	buf,
		u_int16_t	val
	)

======================================================================================================

Definition at line 160 of file camogm.c.

void put_uint32	(	void *	buf,
		u_int32_t	val
	)

Definition at line 170 of file camogm.c.

void put_uint64	(	void *	buf,
		u_int64_t	val
	)

Definition at line 182 of file camogm.c.

---

Variable Documentation

struct context_audio_t ctx_a

Referenced by audio_end(), audio_finish(), audio_init(), audio_process(), audio_start(), camogm_audio_initialize(), camogm_init_mov(), camogm_start_mov(), and camogm_stop().

FILE* debug_file

Definition at line 117 of file camogm.c.

int debug_level

Definition at line 116 of file camogm.c.

camogm_state* state

Definition at line 29 of file autoexp.c.

---
